Sangtuda II

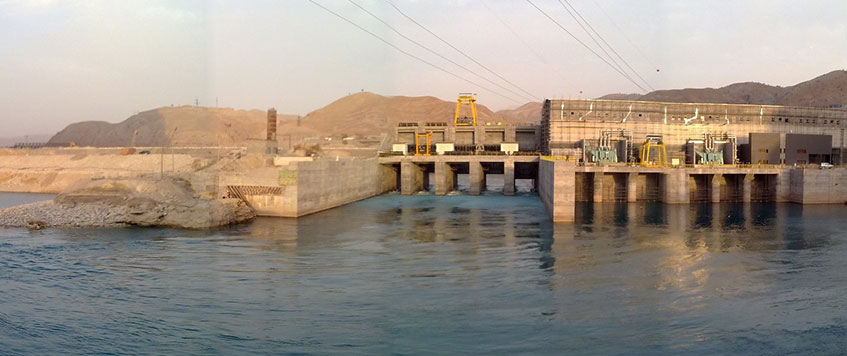

Sangtuda II Dam and HPP is located in the southwest of Tajikistan 180 km southeast of Dushanbe and on the River Vakhsh, which is one of the main rivers of this country with an annual discharge of 630 m3/ sec.

Sangtuda II
Dam Type Earth Fill with Clay Core
Dam Height Above Foundation (m) 32
Dam Crest Length (m) 284
Dam Crest Width (m) 12
Dam Body Volume(m3) 550,000
Total Reservoir Volume(MCM) 66
Reservoir Useful Volume(MCM) 4
Type of Spillway Gated Chute (5 Bays)
Flood Discharge Capacity(m3/s) 4200

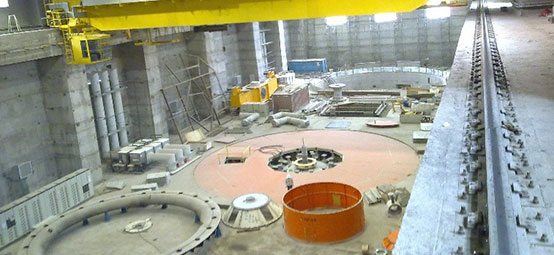

Powerhouse Type Surface
Installed Capacity 220 MW (Each Unit)
Mean Annual Power Generation 1008 GWh


The main objective of Sangtuda II Dam and HPP is hydropower energy generation.


The project studies were initially awarded to Hydro-project Co. of the Soviet Union in the late 1980s. The feasibility studies of Sangtuda II Dam and HPP were conducted between the years 1984 to 1986 by the Ministry of Energy of the Soviet Union. The detail design was carried out during 1986-1989 and approved in 1990. Afterwards, the EPC contract of Sangtuda II Dam and HPP was signed between Sangab Co. and the Owner. Eventually, the consultation and construction supervision services of this project were awarded to Mahab Ghodss Consulting Engineering Co. in 2006.
